Sublimation Printer 20 Head

Sublimation Printer (20 Head)

MODEL : SQ-2220E, SQ.2224E
HEAD : 16pcs 13200 A1
PRINTING WIDTH: 2050mm
INK: Ultra-high/high concentration dye sublimation ink

A 20-head sublimation printer refers to an industrial-grade digital textile printer equipped with 20 Epson i3200-A1 print heads, designed for high-speed production on sublimation paper up to 2.05-2.2 meters wide, ideal for polyester fabrics and large-scale operations like export houses.

TEXTSOL is a professional printing machine leader in North India. We welcome your RFQ so that we can give you a specific introduction to help you find your desired models

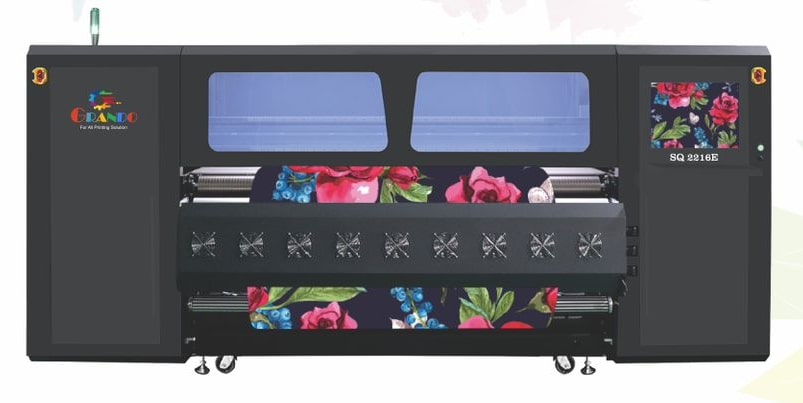

2m Sublimation Printer With Twenty i3200 Print Heads

Sublimation printing machine service,& its all necessary equipment like ink, paper, and all types of spare parts we provide,2m Sublimation printing machine.

Key Features

These printers use dye sublimation ink in 4 colors (C/M/Y/K) with 3.5pl droplet size for vibrant, precise prints at resolutions up to 1440 dpi. They feature linear motors for smooth operation, automatic ink supply from 20L tanks, and integrated drying systems like infrared heaters and fans.

Additional perks include heavy-duty structures supporting up to 10,000m media rolls and RIP Software compatibility (e.g., Neostampa).

Performance

Models like SQ-2220E or Holdwin-2220TX achieve 1-pass speeds of 150 sqm/h or 800 sqm/h (44″ width), equating to 15000-18000 meters per 24 hours.

Dimensions are around 4m x 2.5m x 2m, weighing 1.75 tons, with power needs up to 18KW for drying.

Which 20-head models use Epson i3200 Print Heads

Several 20-head sublimation printer models utilize the Epson i3200-A1 variant optimized for aqueous dye-sublimation inks.

Confirmed Models

These industrial printers are built for high-volume textile printing with 20 Epson i3200-A1 heads:

OR-2220TX: Supports 2.2m width, 3.5pl droplets, up to 600npi resolution.
Holdwin-2220TX: High-Speed model (800 sqm/h),2200mm print width.
SQ-2220E: Achieves 15,000m/24h at 44″ width.
Agni i20: Popular in India, uses 20 i3200 heads for polyester fabrics

Head Specifications

Epson i3200-A1 features 3200 nozzles across 8 rows, 1/300-inch pitch, and 3.5-5pl droplets at 43.2kHz frequency, enabling vibrant 1440dpi output without decryption cards. A1 suits water-based sublimation inks, outperforming older DX5/DX7 in speed and lifespan.

1pass	15000 mtr/24 Hrs.(44″)
1pass	18000 mtr/24 Hrs.(44″)

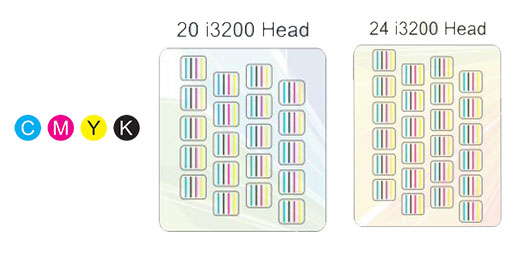

Model	SQ-2220E	SQ-2224E
Print Head	Type Epson i3200-A1 Head Number 20 Ink Dot Size 3.5pl	Type Epson i3200-A1 Head Number 24 Ink Dot Size 3.5pl
Printing Speed	1 pass - 15000 mtr / 24 Hrs. (44")*	1 pass - 18000 mtr / 24 Hrs. (44")*
Ink Cartridges	Type Ultra-high/High concentration dye sublimation ink Color 4 Colors (C/M/Y/K) 6 Colors (C/M/Y/K/Lc/Lm) Supply Method Negative Pressure ink supply Capacity 20L ink tank
Printer Width	2250mm
Printing Width	2050mm
X-Axis Drive	Linear Motors
Encoder Strip	Metal Encoder Strip
Structure	Heavy-duty industrial structure
Loading and take-up-structure	Rear retraction / 10,000 meters high-performance servo motor system
Maximum media load	<10000m
Minimum media weight	30g
Drying Structure	External three-stage automatic control air and heat integrated dryer
Moisturizing Structure	Fully automatic cleaning and moisturizing integrated components
RIP	Riprint / Neostampa / Wasatch / Photoprint
Image Format	JPG, TIF, PDF, etc.
PC Configuration	Operating System Win7 64-bit/Win10 64-bit Hardware Hard disk: 500G or more (SSD recommended); Running Memory above 8G; Graphics Card: ATI dedicated 4G memory; Requirements CPU: i7 processor Interface USB3.0
Power Requirements	Power Supply AC220V+5%, 16A, 50Hz Printing System 5000W Drying System MAX : 18KW
Standard Components	PLC automatic control system / humanized operation interface / automatic ink supply detection system / external automatic control air heat integrated drying, etc
Environment	Tempreature : 15 degree celsius - 32 degree celsius Humidity : 30%-75% (no condensation)
Printer Dimension	4050x2491x2070mm
Weight (with stand)	1.75T
