Sublimation Printer 16 Head
Sublimation Printer 16 Head
MODEL: CS-2016E Pro
HEAD : 16pcs 13200 A1
PRINTING WIDTH: 1900 mm
INK: Sublimation Ink
COLOR: 4 Colors Optional
Sublimation printers with 16 print heads are industrial-grade machines designed for high-speed, large-format textile printing, such as sportswear, flags, and banners. These printers typically use Epson i3200 or similar piezoelectric heads for dye-sublimation ink on transfer paper up to 1.9-2 meters wide. They excel in mass production environments due to their multi-head configurations, enabling speeds over 400 m2/hour in high-speed modes.
Textsol is a professional printing machine leader in North India. We welcome your RFQ so that we can give you a specific introduction to help you find your desired models
2m Sublimation Printer With sixteen i3200 Print Heads
Sublimation printing machine manufacturers & distributors/ Service, printing machine manufacturers,2m Sublimation printing machine,
Key Features
These printers support 4-8 color configurations (e.g., CMYK plus extras for vivid output) and handle media like transfer paper, films, and wallpapers. Dimensions often exceed 2.5m x 4m x 1.9m with weights around 2400kg, requiring three-phase 380VAC power up to 18KW. Production varies: high-definition modes hit 475-788 sqm/h, while high-speed modes reach 705-1230 sqm/h, depending on resolution.
Popular Models
- Hopetech G1-PRO-M16: 16 Epson S3200 heads (2×8 in 4 colors), 1900mm width, speeds up to 705 sqm/h high-speed.
- Baosiwei BSW-S1916: 16 Epson i3200 heads, up to 450 m2/h for textiles.
- Fedar FD61916E and Saitu JC2016: Similar 16-head setups for 2m-wide sublimation.
Considerations
Expect one-year warranties and lifetime maintenance from manufacturers like those on Made-in-China platforms, with MOQs starting at 1 unit. Suppliers in China (e.g., Hopetech, Zhiyu) dominate, but Indian options like Textsol exist for local support in Noida.
Speeds for 16 head sublimation Printer
16-head sublimation printers typically achieve 200-400 m2 per hour at maximum quality settings, such as 2-3 pass modes for high resolutions like 1200-3200 DPI.
This contrasts with their single-pass high-speed modes exceeding 600m2/h at lower quality. Speeds vary by model, ink type, media, and RIP software adjustments.
Speed Breakdown
For the Fedar FD61916E (16 Epson i3200-A1 heads), speeds at higher quality include 350 m2/h in 2-pass mode, dropping further for 3-4 passes at max 3200 DPI. Hopetech G1-PRO-M16 lists HD modes around 475 m2/h (likely 2-pass), while high-quality production often settles at 250-350 m2/h for textiles.
Factors Affecting Output
Resolution, pass count, and color density directly lower speeds: single-pass prioritizes volume (670 m2/h on Fedar), multi-pass ensures detail for premium textiles. Environmental controls (20-35 degree celsius, 35-65% RH) and features like auto nozzle care maintain consistency.
Model Examples
- Fedar FD61916E: 350m2/h (2-pass, max quality).
- Hopetech series: 475 m2/h HD mode equivalent.
Real-world tests confirm 250-400 m2/h is sustainable at top settings for 1.9m widths.
| 360*1200dpi – 1pass | 600 m2/ Hrs |
|---|---|
|
720*1200dpi – 2pass |
300 m2/ Hrs |
| Model | CS-2016E Pro |
|---|---|

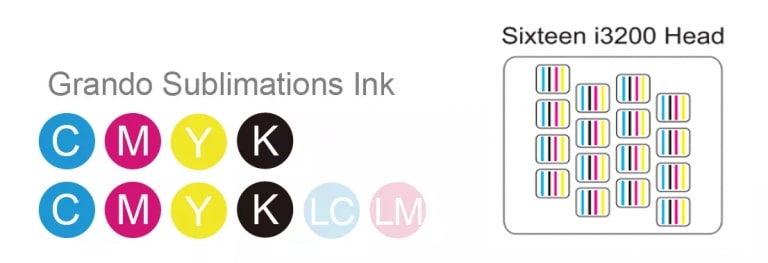

| Printhead | 16pcs i3200 A1 |
| Printing Technology | VSD Technology |
| Printing Width | 1900mm |
| Printing Height | 1.5mm to 8mm adjustable |
| Production | 1pass 360*1200dpi 600m2/hr 2pass 720*1200dpi 300m2/hr |
| Ink | Type Sublimation Ink Capacity 10L |
| Media | Width 1900mm Max Roll Weight 10000m/Roll Media range Sublimation Paper 29GSM to 120GSM |
| Heater | Pre/Post Heater |
| Drying System | External drying system |
| Feeding and Take up system | Dual motor double air shaft winding |
| Guid Rail | Dual THK |
| Interface | Dual USB 3.0 |
| RIP Software | Maintop/Neostampa/PhotoPrint |
| Operation Environments | Temperature: 15C-30C, Humidity: 35% RH - 65% RH |
| Power | 3500W/23KW |
| Dimensions of Printer(L*W*H*) | 3780x1100x1800(mm) |
| Dimensions of Packing(L*W*H*) | 3800x1150x1860(mm) |
| Net Weight | 1500KG |
| Gross Weight | 1750KG |
