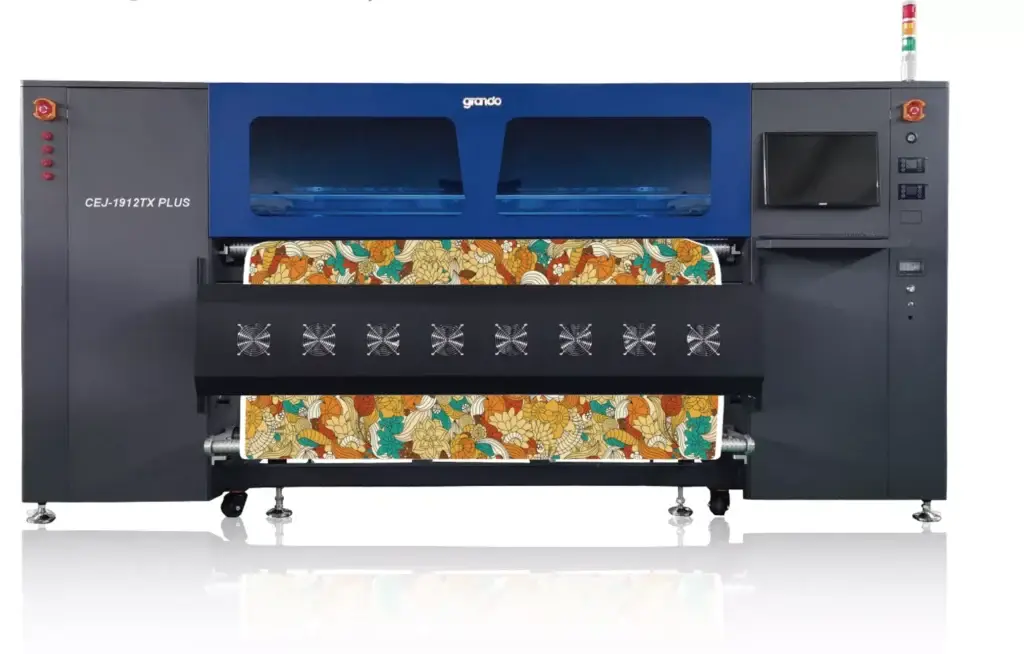

Sublimation Printer 12 Head

MODEL: CEJ-1912TX Plus
HEAD: Twelve i3200 A-I Print Heads EPSON ORIGINAL
PRINTING WIDTH: 79.9 in. (2008 mm)
INK: Dye Sublimation Ink
COLOR: 4 Colors Optional
RESOLUTION: Maximum 3600dpi

Sublimation printers with 12 print heads are industrial-grade machines designed for high-speed, large-format dye-sublimation printing on textiles and transfer paper.

These printers typically use multiple Epson i3200-A1 heads for enhanced productivity, supporting widths up to 1.9-2 meters and speeds exceeding 700 sqm per 8-hour shift. Models like the Textsol CEJ-1912TXPRO or similar from Hopetech and Oric dominate this category, ideal for apparel and banners.

Key Features

These printers feature 12 Epson i3200 heads in 4-color setups (CMYK), resolutions up to 3600 dpi, and droplet sizes around 3.5-6 pl for sharp, vibrant outputs. Automatic media handling includes air shafts, take-up systems, and integrated dryers for continuous operation. Power needs range from 2500W for the printer plus 8kW for drying.

Printing Speeds

High-speed modes achieve 7000 meters per 24 hours at 44-inch width in 1-pass printing. Production varies by mode: up to 1136 sqm/hour in high-speed for 12-head/4-color configs on transfer paper. They support media from 25gsm paper to films.

Applications

Best suited for sports jerseys, flags, soft signage, and home decor via sublimation transfer. Compatible with dye-sublimation inks and optional reactive/pigment types for diverse textiles.

Typical Print Speed and Daily Capacity for 12 Head Units

Typical print speeds for 12-head sublimation printers range from 200-530 square meters per hour (sqm/h) in high-speed modes, depending on resolution, pass count, and model specifics like Epson i3200-A1 heads. For instance, the OR-1912TX PRO achieves 530 sqm/h at 360×1200 dpi in 1-pass printing on a 1.9m width. Hopetech models with 12 heads/4 colors hit high-speed modes around 300-400 sqm/h, scaling with configuration.

Daily Capacity

Daily production typically reaches 3,000-5,000 sqm for 12-head units, based on 8-10 hour shifts at sustained speeds. Extrapolating from speeds, 530 sqm/h yields~4,240 sqm in 8 hours; industry benchmarks for similar 8-head units at 2,000 sqm/day suggest 12-heads proportionally higher at ~3,000 sqm/day. Agni i12 lists 200 meters/hour capacity, translating to ~1,600 sqm/day on standard widths.

Factors Affecting Output

Pass count and DPI: 1-2 pass high-speed (360-720 dpi) maximizes throughput; 4-6 pass quality modes drop to 100-200 sqm/h.
Media Width: Common 1.9m; speeds quoted per hour on transfer paper.
Operation: Assumes continuous run with drying; real-world yields 80-90% due to setup/downtime.

3600 dpi – 1pass	7000 mtr/24 Hrs.(44″)

Model	CEJ-1912TX Plus
Print Head	Twelve i3200 A-1 Print Heads EPSON ORIGINAL
Droplet Size	3.5pl
Acceptable Media	Width 79.9 in. (2030 mm) Thickness Maximum 30 mil ( 1 mm) Weight (1250 kg)
Printing Width	79.9 in. (2008 mm)
Ink Cartridges	Type Dye Sublimation Ink Capacity Siphon + Automatic Ink Replenishment Color 4 Colors ( Cyan, Magenta, Yellow, Black)
Printing Resolution	Maximum 3600 dpi
Printing Speed	1pass - 7000 mtr / 24 Hrs.(44")*
Print Media Control	Air Shaft Automatic Take-up
Interface	USB 3.0
Power Supply	AC 220V + 5%, 16A, 50/60 HZ
Power Requirement	Printer - 2500W , Drying Unit Power - 8 KW
Dimensions ( with stand)	144(W)x29.5(D)x72(H) in [ ( 3670(W)x750(D)x1850(H) mm )]
Dryer	External Automatic Air Heat Integrated Dryer
Package Dimensions	Entirety Packing : 145(W)x30(D)x73(H)in. Split Packing : 3800(W)x560(D)x1750(H) mm
CPU Configration	Core i7 / i9 , RAM 16 GB, HDD - Min. 1 TB, SSD - 500GB, Graphics Card
Standard Components	External Automatic Air Heat Integrated Dryer, Low Ink Alarm System, Air Shaft Media Loading and Take-up, and Automatic Moisturizing and Cleaning Init.
Accessories	USB cable, media clamp, manual, drain bottle, ink cartridges etc.
